Multisensory haptics:
Agile Hand

The anthropomorphic Agile Hand is composed of five identical, modularly designed robotic fingers. Thanks to its humanoid dexterity, it can perform delicate tasks and offers a hand where us humans can’t.

Sturdy grip

10 N active fingertip force equip Agile Hand with a firm but delicate grip.

High flexibility

With 21 joints and 15 or 16 degrees of freedom, the 1.5 kg Agile Hand performs human-like movements effortlessly.

Quick movements

360°/s joint velocity allow Agile Hand to quickly adapt to different tasks.

Seamless connectivity

Fast changer adapter for the robot flange according to ISO 9409-1-50-4-M6.

Discover the features in more detail

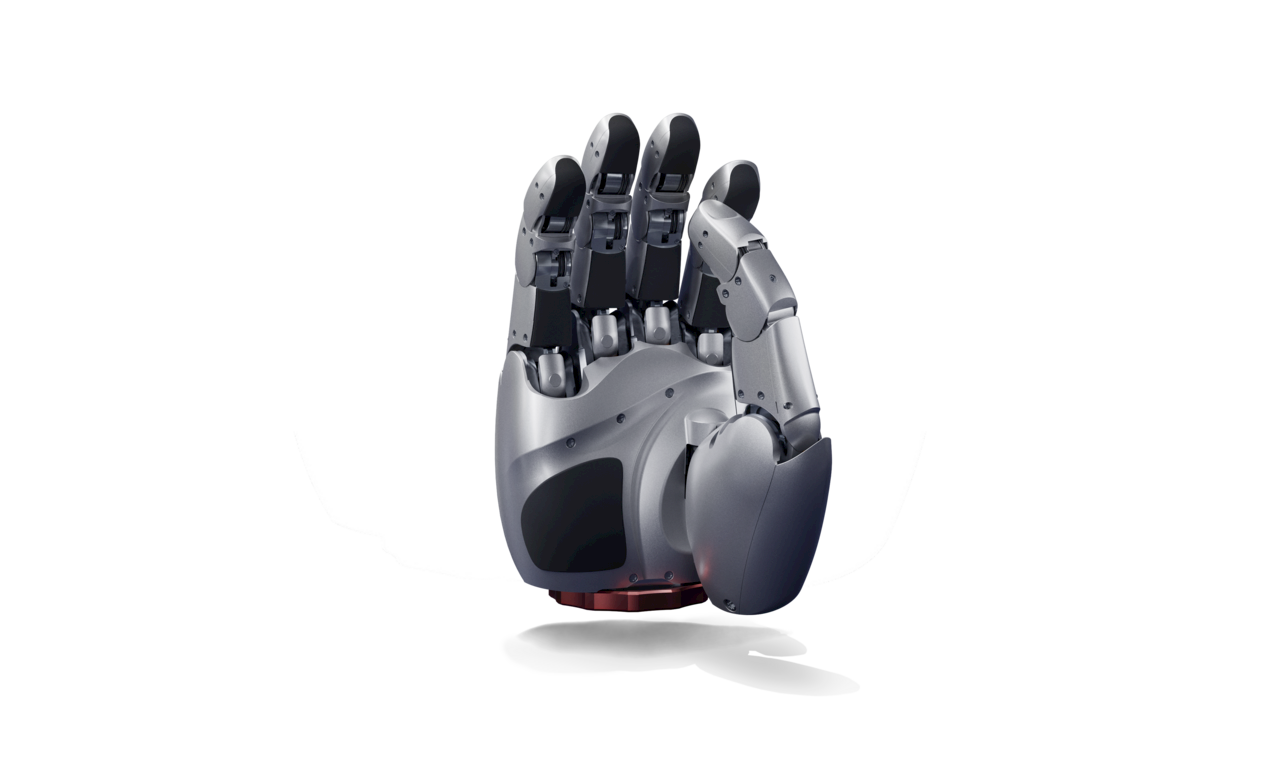

csm_AgileRobots-Agile-Hand-03_ca903a6f0a

Multisensory system

Joint torque and position sensors are integrated in every actuated joint. Reliable real-time feedback is provided via a compact communication system inside the fingers and palm.

Modular finger design

The identical and modular design integrates actuators, electronics, multisensory and mechanical transmission systems in each finger. This simplifies manufacturing and maintenance while allowing for easy reconfiguration.

Real-time communication

Proprietary communication protocol connecting finger, hand and external computer at 1 kHz control rate.

Active compliant control

To permit a close human-robot collaboration, Agile Hand’s mechatronic system and active compliant control strategy, based on multi-sensory feedback on joint torque and position, were designed to be particularly human-friendly.
